Multifunctional sludge granulator
powerful sludge pair-roll extrusion granulator
coal sludge powder and tar sludge granulation equipment
Introduction
This machine is a new equipment for directly degassing, shrinking, and sizing the powder into ideal particles by using the gold crystal water in the powder (water content of 0.5-5%).
This model has reasonable structure and stable and reliable performance. Convenient cleaning and maintenance, high power, high output, and good particle fluidity.
The granules formed by this mechanism can be compressed into tablets, made into granules, capsules, etc. The machine is mainly used for granulation in the pharmaceutical, food, chemical and other industries.
Especially used for wet granulation of unsolvable materials. The machine can be combined with spray, dryer, mixer, etc.
The pair-roll extrusion granulator is a granulating equipment. It is produced by non-drying, room temperature process, and it is formed in one time. It is suitable for granulation of various raw materials such as compound fertilizer, medicine, chemical feed, coal, metallurgy, etc., and can produce compound fertilizer of various concentrations and various types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, etc.) . Single raw material: raw materials such as rare earth, ammonium bicarbonate, ammonium sulfate, ammonium chloride, potassium chloride, phosphate fertilizer, monoammonium, potassium sulfate, salt, etc. Compound fertilizers: binary and ternary compound fertilizers with various ratios of nutrient content 17.3-53%, organic-inorganic compound fertilizers, bio-organic fertilizers, municipal sludge, domestic waste organic fertilizers, mixed fertilizers, etc.
Product Details
- Ball forming rete can reach 85%.no drying
- Double roll pressure determines particle strength
- Roll speed is adjusted by changing the belt pulley transmission ratio
- Roll skin adopts new wear-resistant material
parameter
| Model | power(kw) | Particle diameter(mm) | Roller size(mm) | Overall dimensions(mm) |
| JZ-1T | diameters4.5mm : 11 diameter > 4.5mm : 15 | 3- 10 | 150*220 | 1450*800*1450 |
| JZ-1.5T | diameters4.5mm : 18.5 diameter > 4.5mm : 22 | 3- 10 | 150*300 | 1450*850*1500 |
| JZ-2T | diameters4.5mm : 22 diameter > 4.5mm : 30 | 3- 10 | 185*300 | 1630*850*1650 |
| JZ-2.5T | diameters4.5mm: 37 diameter > 4.5mm : 45 | 3- 10 | 300*300 | 1850*1100*2050 |
Product Tags:
|
|

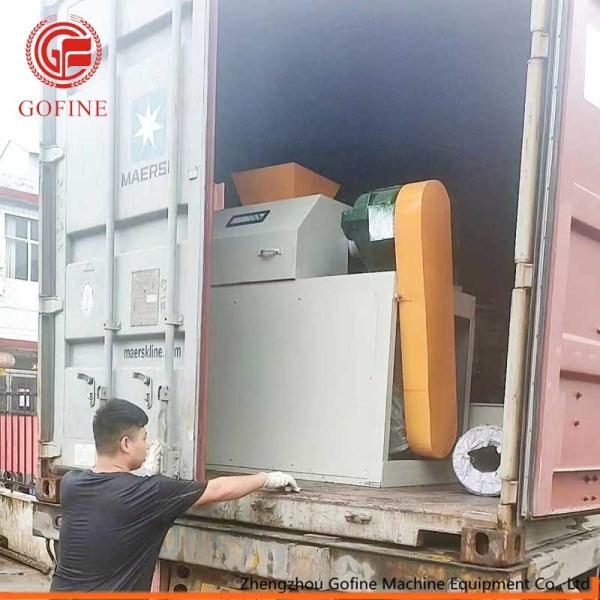

380v 8mm 2t/H Q235 Sludge Double Roller Granulator Images
|
